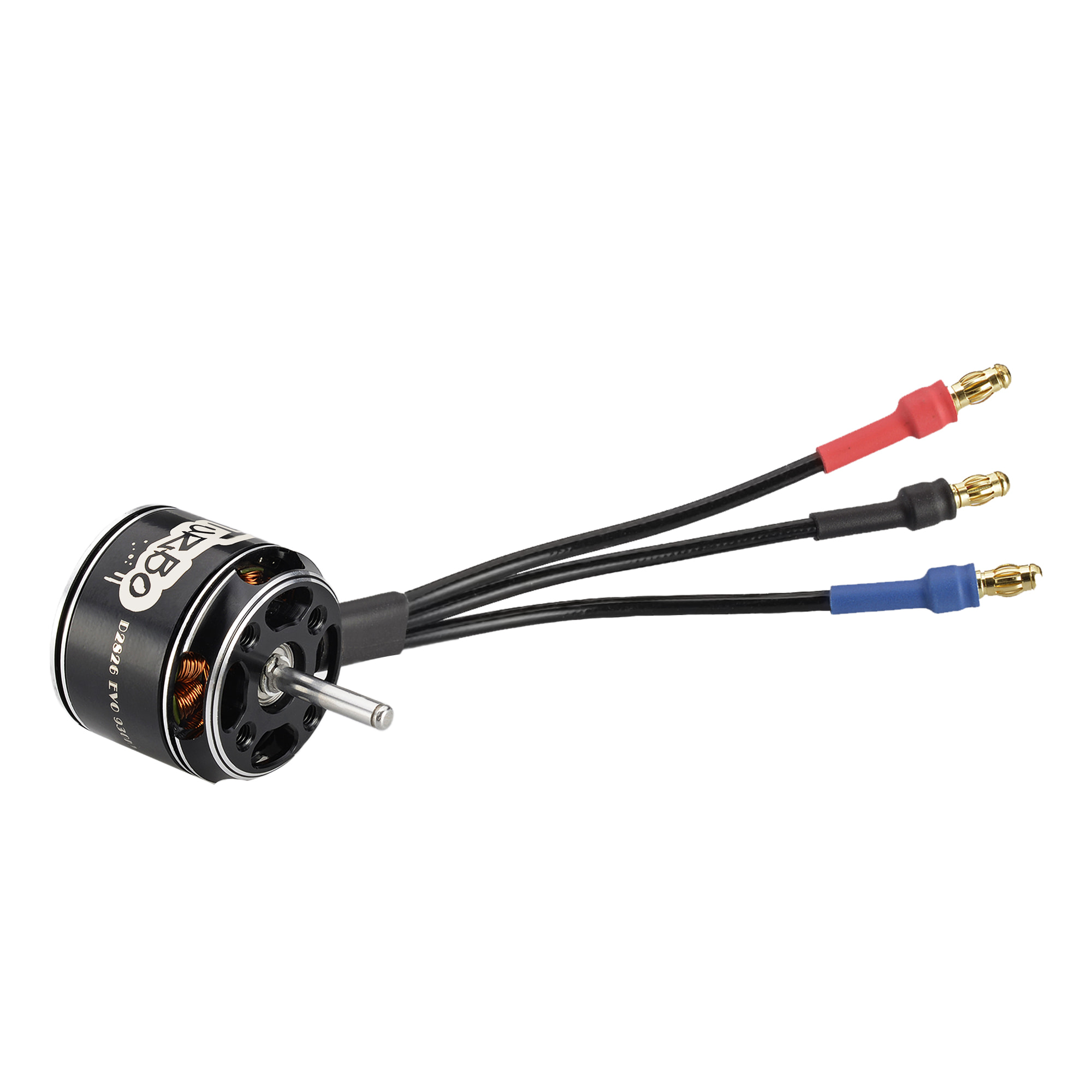

2826 EVO Mótar Sciathán Seasta

Mar mhonaróir gairmiúil Sciathán Seasta 2826 EVO Motor Mótar, is féidir leat a bheith cinnte 2826 EVO Fixed Wing Motor a cheannach ó mhonarcha Flash Hobby agus cuirfimid an tseirbhís iar-díola is fearr agus seachadadh tráthúil ar fáil duit.
â Meáchan: 55.7g (Sreanga san áireamh)
Méid Mótair: 28 x 26mm
Méid seafta: 3.0 * 41.0mm
Trastomhas Stator: 22mm
â Airde Stator: 8mm
Gluaisteán: 1619mm(M34)
âCumraíocht: 12N14P
â Luach KV: 930KV, 1000KV, 1450KV, 2200KV nó KV saincheaptha

Mionsamhail:2826 EVO

Seol Fiosrúchán

Cur síos ar an Táirge

Monarcha Cáilíocht Soláthair Dhíreach 2826 Mótar Sciathán Seasta EVO déanta sa tSín. Is é Flash Hobby monaróir agus soláthraí 2826 EVO Fixed Wing Motor sa tSín.

D 2826 EVOIarratas Mótair Brushless RC

D 2826 EVO RC Mótar Brushless le haghaidh UAV Aircraftï ¼ Multicoptersï ¼ RC Planeï ¼ Helicopterï ¼ ¼ Cradle Coffee Machineï ¼ Bainne Tae Machineï ¼ meaisín druileála leictreachï ¼ meaisín gearrtha ¼ ¼ lámh robotic agus araile.

D 2826 EVOGnéithe Mótair Brushless RC:
Maighnéad Leibhéal 48H
Tástáil Rotor Chothromaithe Bheachtais
Dearadh Mótair Ard-chasmhóiminte 14P12N
Cloigín Alúmanam CNC 6061-T6
Imthacaí Ard RPM Iompórtáilte (NSK/NMB).

Foirceannadh Sreanga Copar Frithsheasmhach in Ardteocht

D 2826 EVOSonraíocht Mótair Brushless RC

Meáchan: 55.7g (Sreanga san áireamh)
Méid Mótair: 28 x26mm
Méid seafta: 3.0*41.0mm
Trastomhas Stator: 22mm
Airde Stator: 8mm
Gluaisteán: 16*19mm(M3*4)
Cumraíocht: 12N14P

Luach Roghnúcháin KV:

Luach KV: 930KV, 1000KV, 1450KV, 2200KV nó KV saincheaptha

KV: 930KV
Uasmhéid vata: 162.9W
Uasmhéid Reatha: 13.2A
Gan ualach reatha: 0.63A
Friotaíocht: 156.3mÎ©
Battery: 3-4S Lipo
Molta: prop 9 orlach

KV: 1100KV
Uasmhéid vata: 292W
Uasmhéid Reatha: 18.43A
Gan ualach reatha: 0.7A
Friotaíocht: 137.9mÎ©
Battery: 3-4S Lipo
Molta: prop 9 orlach

KV: 1450KV
Uasmhéid vata: 367W
Uasmhéid Reatha: 30.97A
Gan ualach reatha: 1.26A
Friotaíocht: 30.5mÎ©
Battery: 3-4S Lipo
Molta: prop 9 orlach

KV: 2200KV
Uasmhéid vata: 311.5W
Uasmhéid Reatha: 26.1A
Gan ualach reatha: 1.26A
Friotaíocht: 30.5mÎ©
Battery: 3-4S Lipo
Molta: prop 9 orlach

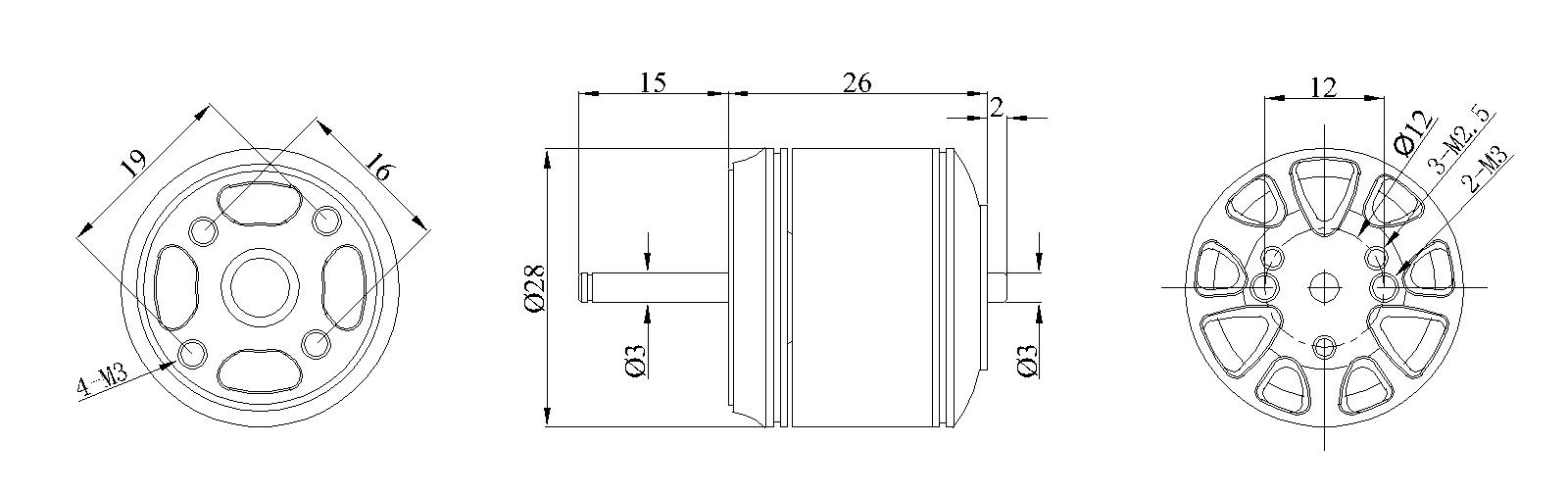

Líníocht Mótair D2826 EVO:

Sonraí Tástála Mótair D2826 EVO:

SONRAÍ TEICNIÚLA MOTOR:
ltem NÍL.	Volta(V)	Prop	Throttle (%)	REATHA (A)	Cumhacht(W)	Séimhiú (g)	PRM	Éifeachtúlacht (g/W)	Oibriúcháin teocht (℃)
D2826-930KV(EVO)	12.56	APC 9x6	40%	2.66	33.4	266	4413	8.0	36.7℃
	12.54		50%	3.66	45.9	344	4972	7.5
	12.52		60%	4.78	59.8	421	5483	7.0
	12.48		70%	6.70	83.6	522	6153	6.2
	12.42		80%	9.02	112.0	655	6808	5.9
	12.37		90%	11.79	145.8	781	7409	5.4
	12.34		100%	13.20	162.9	840	7647	5.2
	12.48	APC 9x6	40%	2.53	31.6	225	4806	7.1	36.3℃
	12.46		50%	3.40	42.4	288	5418	6.8
	12.44		60%	4.29	53.4	360	5910	6.7
	12.41		70%	5.55	68.9	378	6509	5.5
	12.37		80%	7.41	91.7	529	7181	5.8
	12.33		90%	9.71	119.7	650	7881	5.4
	12.31		100%	10.89	134.1	688	8189	5.1
D2826-1000KV(EVO)	12.62	APC 9x6	40%	2.99	37.7	280	5084	7.4	36.2℃
	12.55		50%	3.97	49.8	314	5726	6.3
	12.47		60%	5.03	62.7	380	6250	6.1
	12.27		70%	6.55	80.4	432	6824	5.4
	12.14		80%	8.56	103.9	511	7476	4.9
	12.06		90%	11.15	134.5	609	8175	4.5
	12.00		100%	12.50	150.0	648	8416	4.3
	16.63	APC 8x6	40%	3.87	64.4	335	7104	5.2	37.5℃
	16.55		50%	5.22	86.4	413	7858	4.8
	16.45		60%	6.52	107.3	489	8523	4.6
	16.33		70%	8.07	131.8	566	9113	4.3
	16.10		80%	10.50	169.1	674	9922	4.0
	16.01		90%	13.95	223.3	805	10742	3.6
	15.94		100%	15.67	249.8	847	11100	3.4
	16.56	APC 9x6	40%	4.16	68.9	397	6283	5.8	38.8℃
	16.46		50%	5.70	93.8	493	6992	5.3
	16.31		60%	7.44	121.3	605	7639	5.0
	16.21		70%	9.94	161.1	758	8398	4.7
	16.00		80%	12.90	206.4	917	9156	4.4
	15.88		90%	16.62	263.9	1050	9886	4.0
	15.85		100%	18.43	292.1	1111	10141	3.8
D2826- 1450KV(EVO)	12.49	7×5	40%	6.44	80.4	340	7639	4.2	38.5℃
	12.46		50%	8.68	108.2	423	8486	3.9
	12.41		60%	11.01	136.6	500	9187	3.7
	12.35		70%	13.59	167.8	584	9883	3.5
	12.25		80%	17.86	218.8	711	10820	3.2
	12.13		90%	23.15	280.8	835	11707	3.0
	12.07		100%	25.83	311.8	887	12081	2.8
	12.49	APC 8x6	40%	6.45	80.6	393	7565	4.9	39.2℃
	12.44		50%	8.77	109.1	480	8388	4.4
	12.39		60%	11.19	138.6	565	9024	4.1
	12.34		70%	13.85	170.9	649	9708	3.8
	12.22		80%	18.49	225.9	778	10583	3.4
	12.09		90%	24.27	293.4	909	11409	3.1
	12.00		100%	27.09	325.1	956	11673	2.9
	12.46	APC 9x6	40%	7.04	87.7	416	6668	4.7	40.1℃
	12.40		50%	9.78	121.3	592	7455	4.9
	12.33		60%	13.05	160.9	708	8202	4.4
	12.24		70%	16.67	204.0	855	8912	4.2
	12.11		80%	21.72	263.0	1017	9704	3.9
	11.92		90%	28.11	335.1	1194	10381	3.6
	11.85		100%	30.97	367.0	1256	10645	3.4
D2826-2200KV(EVO)	12.41	APC9x6	40%	8.53	105.9	328	17323	3.1	39.6℃
	12.37		50%	10.54	130.4	387	18730	3.0
	12.33		60%	12.34	152.2	442	19866	2.9
	12.29		70%	13.86	170.3	500	20750	2.9
	12.26		80%	15.20	186.4	538	21420	2.9
	12.19		90%	17.35	211.5	583	22561	2.8
	12.14		100%	19.42	235.8	653	23470	2.8
	12.34	EA6050	40%	10.35	127.7	448	14953	3.5	40.9℃
	12.28		50%	13.11	161.0	547	16434	3.4
	12.22		60%	15.48	189.2	626	17576	3.3
	12.17		70%	17.58	213.9	698	18557	3.3
	12.11		80%	19.64	237.8	772	19451	3.2
	11.99		90%	23.63	283.3	896	20856	3.2
	11.92		100%	26.13	311.5	963	21658	3.1
Nótaí: Is é an riocht tástála teochta ná teocht an dromchla mótair i throttle 100% agus ritheann an mótar 15 s.teocht timpeallachta 26â
