Mótar Sciathán Seasta D2836EVO

Is monaróir agus soláthraí Sciathán Seasta D2836EVO é Flash Hobby sa tSín.

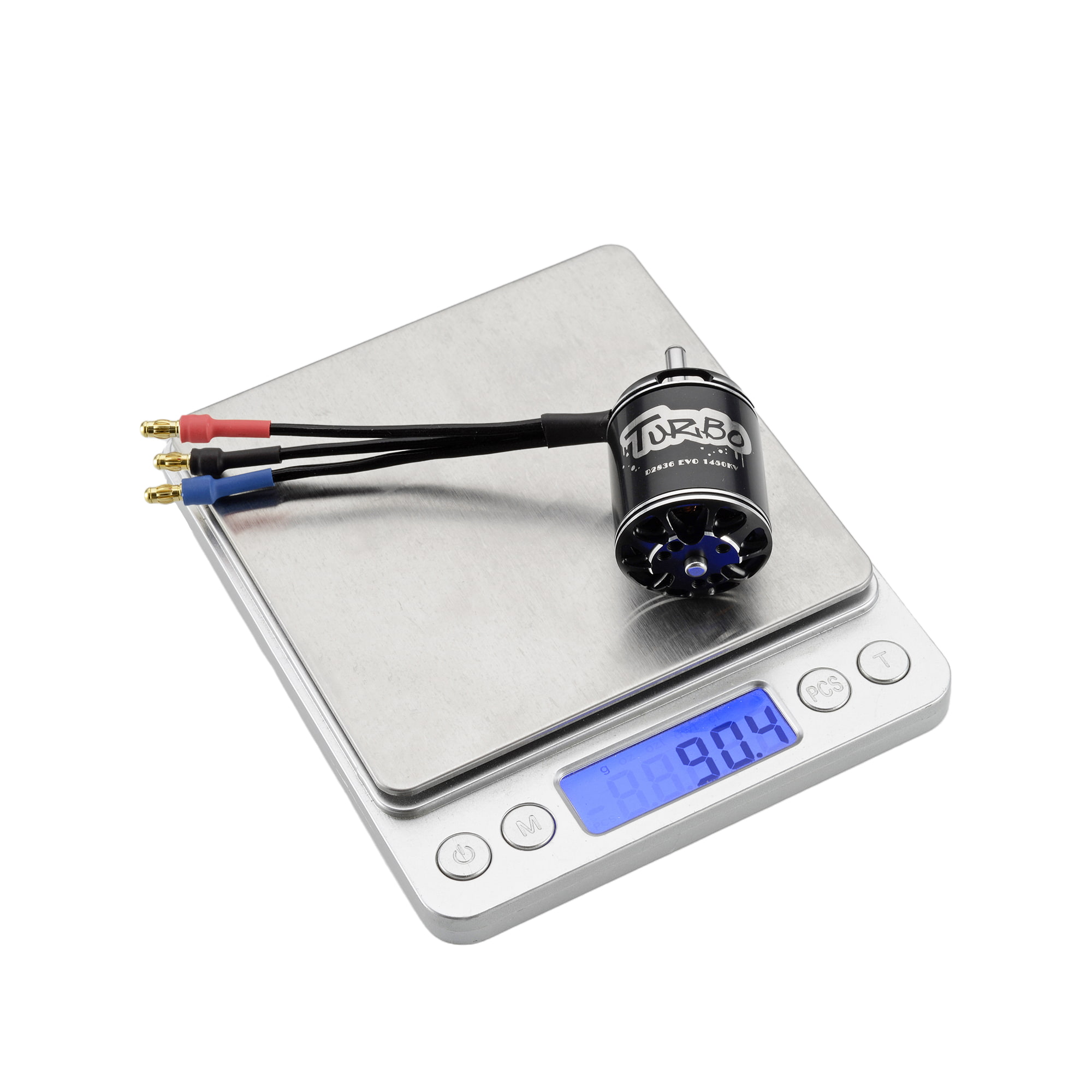

● Meáchan: 88.6g (Sreanga san áireamh)
● Mótair Méid: 28 x36mm
● Méid seafta: 4.0*51.0mm
● Trastomhas Stator: 22mm
● Airde Stator: 17mm
● Gluaisteán: 16*19mm(M3*4)
● Cumraíocht: 12N14P
● Luach KV: 750KV, 850KV, 1100KV, 1450KV nó KV saincheaptha

Mionsamhail:D2836EVO

Seol Fiosrúchán

Cur síos ar an Táirge

Is é Flash Hobby monaróir, soláthraí agus onnmhaireoir na Síne D2836EVO Fixed Wing Motor. Ag cloí leis an tóir ar chaighdeán foirfe táirgí, ionas go mbeidh ár Mótar Sciathán Seasta D2836EVO sásta ag go leor custaiméirí. Is iad dearadh foircneach, amhábhar ardchaighdeáin, ardfheidhmíocht agus praghas iomaíoch a theastaíonn ó gach custaiméir, agus sin an méid is féidir linn a thairiscint duit freisin. Ar ndóigh, tá ár seirbhís iar-díola foirfe riachtanach freisin. Má tá suim agat inár seirbhísí Mótar Sciathán Seasta D2836EVO, is féidir leat dul i gcomhairle linn anois, tabharfaimid freagra duit in am!

Iarratas Mótair DC Brushless D2836

D2836EVO（2217） Mótar DC Brushless ， Héileacaptar, Meaisín Caife Cradle Meaisín Tae Bainne Meaisín Druileála Leictreach Meaisín Gearrtha Lámh Robotic, Crawler

D2836Gnéithe Mótair DC Brushless:
Maighnéad Leibhéal 48H
Tástáil Rotor Chothromaithe Bheachtais
Dearadh Mótair Ard-chasmhóiminte 14P12N
Cloigín Alúmanam CNC 6061-T6
Imthacaí Ard RPM Iompórtáilte (NSK/NMB).

Foirceannadh Sreanga Copar Frithsheasmhach in Ardteocht

Sonraíocht Mótair DC Brushless

Meáchan: 88.6g (Sreanga san áireamh)
Méid Mótair: 28 x36mm
Méid seafta: 4.0*51.0mm
Trastomhas Stator: 22mm
Airde Stator: 17mm
Gluaisteán: 16*19mm(M3*4)
Cumraíocht: 12N14P

Luach KV don Roghnú

Luach KV: 750KV, 850KV, 1100KV, 1450KV nó KV saincheaptha

KV: 750KV
Uasmhéid vata: 194.9W
Uasmhéid Reatha: 11.95A
Gan ualach reatha: 0.74A
Friotaíocht: 124mΩ
Battery: 3-4S Lipo
Molta: prop 9 orlach

KV: 850KV
Uasmhéid vata: 244.5W
Uasmhéid Reatha: 15.11A
Gan ualach reatha: 0.92A
Friotaíocht: 97.4mΩ
Battery: 3-4S Lipo
Tide Molta: prop 10 orlach

KV: 1100KV
Uasmhéid vata: 462.7W
Uasmhéid Reatha: 30.3A
Gan ualach reatha: 1.37A
Friotaíocht: 57.9mΩ
Battery: 3-4S Lipo
Molta: prop 9 orlach

KV: 1450KV
Uasmhéid vata: 739.6W
Uasmhéid Reatha: 48.69A
Gan ualach reatha: 2.24A
Friotaíocht: 33.5mΩ
Battery: 3-4S Lipo
Molta: prop 9 orlach

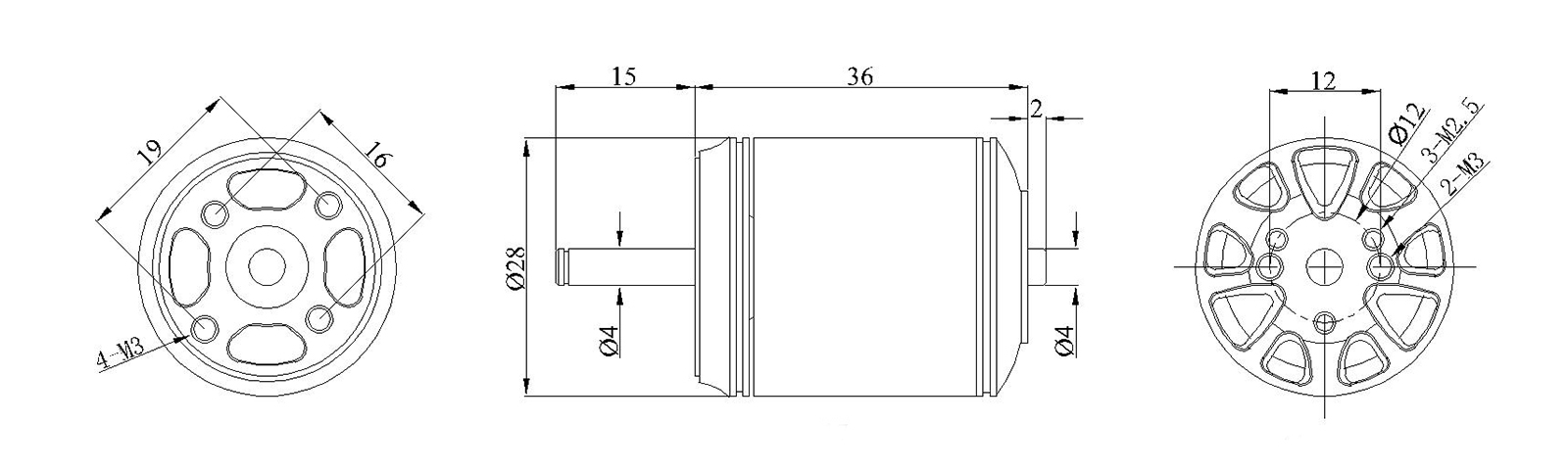

Líníocht Mótair D2836 EVO

SONRAÍ TÁSTÁIL Mótair D2836 EVO:

SONRAÍ TEICNIÚLA MOTOR:
Níl.	Volta(V)	Prop	Throttle (%)	REATHA (A)	Cumhacht(W)	Séimhiú (g)	PRM	Éifeachtúlacht (g/W)	Oibriúcháin teocht (℃)
D2836-750KV(EVO)	12.46	APC 9x6	40%	1.95	24.3	220	5441	9.1	30.8℃
	12.45		50%	2.44	30.4	260	5932	8.6
	12.44		60%	2.83	35.2	288	6341	8.2
	12.43		70%	3.21	39.9	318	6639	8.0
	12.41		80%	3.61	44.8	346	6929	7.7
	12.39		90%	4.77	59.1	424	7666	7.2
	12.38		100%	4.88	60.4	425	7766	7.0
	16.59	APC 9x6	40%	3.44	57.1	414	5962	7.2	39.5℃
	16.56		50%	4.52	74.9	498	6612	6.7
	16.53		60%	5.55	91.7	569	7107	6.2
	16.50		70%	6.65	109.7	650	7573	5.9
	16.44		80%	8.54	140.4	764	8323	5.4
	16.33		90%	11.60	189.4	953	9182	5.0
	16.31		100%	11.95	194.9	966	9260	5.0
D2836-850KV(EVO)	12.35	APC 12x6	40%	2.80	34.6	265	3552	7.7	38.8℃
	12.31		50%	4.46	54.9	350	4030	6.4
	12.29		60%	5.61	68.9	454	4604	6.6
	12.26		70%	7.12	87.3	583	5217	6.7
	12.21		80%	9.44	115.3	727	5727	6.3
	12.14		90%	12.95	157.2	825	6296	5.2
	12.13		100%	13.19	160.0	827	6316	5.2
	16.59	10×5	40%	3.46	57.4	387	5102	6.7	39.3℃
	16.56		50%	4.98	82.5	494	5745	6.0
	16.52		60%	6.47	106.9	611	6429	5.7
	16.44		70%	8.51	139.9	736	7077	5.3
	16.34		80%	11.12	181.7	875	7760	4.8
	16.19		90%	14.66	237.3	1026	8409	4.3
	16.18		100%	15.11	244.5	1028	8466	4.2
	16.56	APC 11x7	40%	4.06	67.2	383	4217	5.7	39℃
	16.51		50%	6.02	99.4	497	4794	5.0
	16.45		60%	8.16	134.2	630	5444	4.7
	16.31		70%	11.64	189.8	738	5944	3.9
	16.19		80%	14.58	236.1	859	6394	3.6
	15.95		90%	19.66	313.6	1016	6826	3.2
	15.91		100%	19.79	314.9	1011	6827	3.2
D2836-1100KV(EVO)	12.38	APC 9x6	40%	5.76	71.3	438	6409	6.1	40.3℃
	12.32		50%	7.64	94.1	561	7095	6.0
	12.25		60%	9.51	116.5	661	7642	5.7
	12.19		70%	11.46	139.7	735	8163	5.3
	12.03		80%	14.81	178.2	867	8907	4.9
	11.71		90%	19.42	227.4	998	9666	4.4
	11.66		100%	19.95	232.6	1008	9725	4.3
	16.26	APC8x6	40%	6.71	109.1	509	8519	4.7	41.2℃
	16.19		50%	8.93	144.6	615	9367	4.3
	16.12		60%	11.02	177.6	691	10035	3.9
	16.04		70%	13.13	210.6	783	10635	3.7
	15.78		80%	16.62	262.3	920	11320	3.5
	15.47		90%	21.54	333.2	1049	12247	3.1
	15.32		100%	24.46	374.7	1138	12580	3.0
	16.26	APC 9x6	40%	7.72	125.5	667	7637	5.3	42.4℃
	16.17		50%	10.41	168.3	794	8453	4.7
	16.07		60%	13.03	209.4	912	9119	4.4
	15.84		70%	15.92	252.2	956	9719	3.8
	15.63		80%	20.92	327.0	1210	10617	3.7
	15.35		90%	27.22	417.8	1456	11466	3.5
	15.27		100%	30.30	462.7	1623	11804	3.5
D2836- 1450KV(EVO)	12.25	APC9x6	40%	9.81	120.2	618	7540	5.1	43.5℃
	12.04		50%	13.06	157.2	743	8280	4.7
	11.91		60%	16.21	193.1	879	8883	4.6
	11.82		70%	19.69	232.7	995	9475	4.3
	11.63		80%	24.92	289.8	1178	10239	4.1
	11.60		90%	32.92	381.9	1429	11194	3.7
	11.58		100%	37.35	432.5	1535	11602	3.5
	15.97	APC8x4	40%	12.13	193.7	704	10860	3.6	44.2℃
	15.82		50%	16.29	257.7	847	11467	3.3
	15.67		60%	19.77	309.8	945	12423	3.1
	15.70		70%	25.24	396.3	1108	13360	2.8
	15.48		80%	32.96	510.2	1292	14290	2.5
	15.26		90%	43.38	662.0	1497	14668	2.3
	15.19		100%	48.69	739.6	1582	16579	2.1
Nótaí: Is é an riocht tástála teochta ná teocht an dromchla mótair i throttle 100% agus an mótar ag rith 15 teocht timpeallachta 26 ℃
