Baile > Táirgí > Mótar > Mótar Sciathán Seasta > 2830 EVO Mótar Sciathán Seasta

2830 EVO Mótar Sciathán Seasta

Díol Te Praghas Íseal 2830 Mótar Sciathán Seasta EVO. Is é Flash Hobby monaróir agus soláthraí Sciathán Seasta 2830 EVO sa tSín.
â Meáchan: 68.1g (Sreanga san áireamh)
Méid Mótair: 28 x 30mm
Méid seafta: 3.0 * 45.0mm
Trastomhas Stator: 22mm
â Airde Stator: 12mm
Gluaisteán: 1619mm(M34)
âCumraíocht: 12N14P
â Luach KV: 750KV, 850KV, 1000KV, 1300KV nó KV saincheaptha

Mionsamhail:D 2830EVO

Seol Fiosrúchán

Cur síos ar an Táirge

Mar mhonaróir gairmiúil Mótar Sciathán Seasta 2830 EVO ar ardchaighdeán, is féidir leat a bheith cinnte 2830 EVO Fixed Wing Motor a cheannach ó mhonarcha Flash Hobby agus cuirfimid an tseirbhís iar-díola is fearr agus seachadadh tráthúil ar fáil duit.

D 2830 EVOIarratas Mótair Brushless RC

D 2830EVO (2212) Mótar Brushless RC le haghaidh Aerárthaí UAV, Ilcopters, Eitleán RC, Héileacaptar, Meaisín Caife Cradle, Meaisín Tae Bainne, meaisín druileála leictreach, meaisín gearrtha, lámh robotach

D 2830 EVOGnéithe Mótair Brushless RC:
Maighnéad Leibhéal 48H
Tástáil Rotor Chothromaithe Bheachtais
Dearadh Mótair Ard-chasmhóiminte 14P12N
Cloigín Alúmanam CNC 6061-T6
Imthacaí Ard RPM Iompórtáilte (NSK/NMB).

Foirceannadh Sreanga Copar Frithsheasmhach in Ardteocht

D 2830 EVO RC Sonraíocht Mótair Scuabtha

Meáchan: 68.1g (Sreanga san áireamh)
Méid Mótair: 28 x30mm
Méid seafta: 3.0*45.0mm
Trastomhas Stator: 22mm
Airde Stator: 12mm
Gluaisteán: 16*19mm(M3*4)
Cumraíocht: 12N14P

D 2830 EVO KV Luach Roghnúcháin:

Luach KV: 750KV, 850KV, 1000KV, 1300KV nó KV saincheaptha

KV: 750KV
Uasmhéid vata: 175.4W
Uasmhéid Reatha: 10.78A
Gan ualach reatha: 0.6A
Friotaíocht: 168.5mÎ©
Battery: 3-4S Lipo
Molta: prop 9 orlach

KV: 850KV
Uasmhéid vata: 195W
Uasmhéid Reatha: 15.87A
Gan ualach reatha: 0.68A
Friotaíocht: 145.4mÎ©
Battery: 3-4S Lipo
Propáil Molta: 11 orlach prop

KV: 1000KV
Uasmhéid vata: 196.6W
Uasmhéid Reatha: 16.8A
Gan ualach reatha: 0.86A
Friotaíocht: 92.8mÎ©
Battery: 3-4S Lipo
Tide Molta: prop 10 orlach

KV: 1300KV
Uasmhéid vata: 324.4W
Uasmhéid Reatha: 28.3A
Gan ualach reatha: 1.24A
Friotaíocht: 63mÎ©
Battery: 3-4S Lipo
Tide Molta: prop 10 orlach

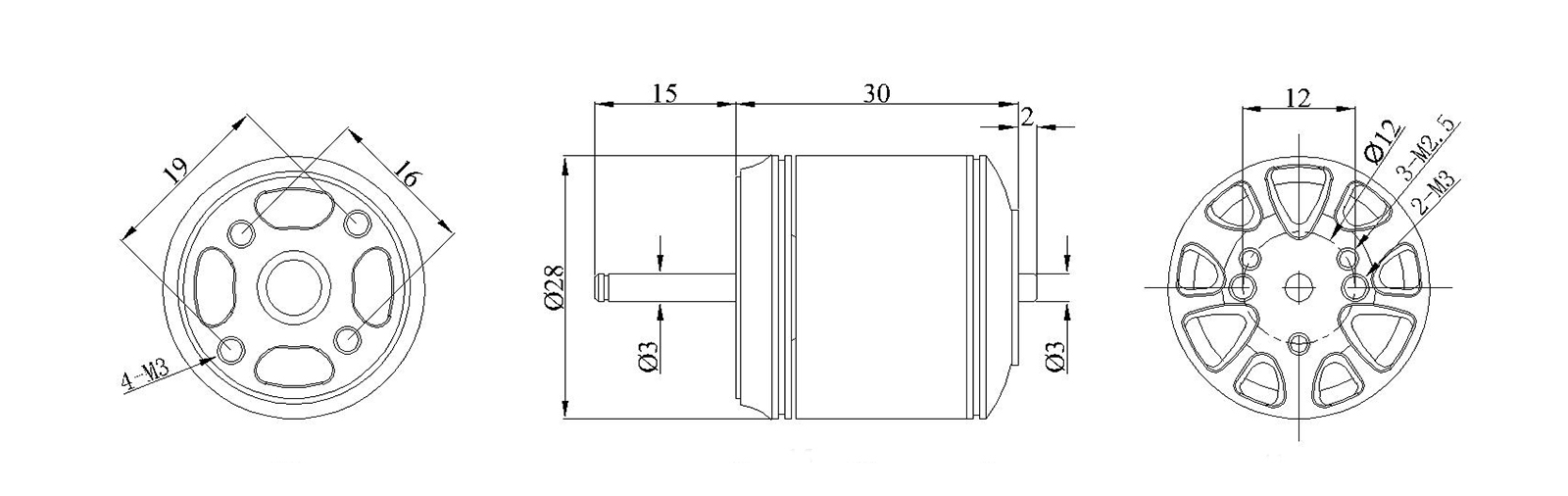

Líníocht Mótair D2830 EVO:

Sonraí Tástála Mótair D2830 EVO:

SONRAÍ TEICNIÚLA MOTOR:
ltem NÍL.	Volta(V)	Prop	Throttle (%)	REATHA (A)	Cumhacht(W)	Séimhiú (g)	PRM	Éifeachtúlacht (g/W)	Oibriúcháin teocht (℃)
D2830-750KV(EVO)	12.65	APC 9x6	40%	1.89	23.9	231	4501	9.6	36.7℃
	12.63		50%	2.51	31.7	285	5014	9.0
	12.61		60%	3.12	39.3	328	5463	8.3
	12.59		70%	3.71	46.7	369	5836	7.9
	12.53		80%	4.80	60.1	402	6358	6.7
	12.47		90%	6.23	77.7	525	7020	6.8
	12.42		100%	7.08	87.9	580	7278	6.6
	16.69	APC 8x6	40%	2.46	41.1	280	6214	6.8	37.6℃
	16.66		50%	3.19	53.1	314	6856	5.9
	16.63		60%	3.91	65.0	380	7387	5.8
	16.60		70%	4.62	76.7	432	7855	5.6
	16.54		80%	5.73	94.8	511	8420	5.4
	16.46		90%	7.66	126.1	609	9226	4.8
	16.40		100%	8.49	139.2	648	9583	4.7
	16.69	APC 9x6	40%	2.74	45.7	346	5546	7.6	39.5℃
	16.66		50%	3.62	60.3	394	6234	6.5
	16.61		60%	4.61	76.6	447	6693	5.8
	16.56		70%	5.70	94.4	580	7261	6.1
	16.48		80%	7.38	121.6	692	7953	5.7
	16.35		90%	9.75	159.4	840	8672	5.3
	16.27		100%	10.78	175.4	897	8974	5.1
D2830-850KV(EVO)	12.48	APC 8x6	40%	2.04	25.5	218	5286	8.6	36.8℃
	12.46		50%	2.64	32.9	259	5857	7.9
	12.44		60%	3.22	40.1	296	6301	7.4
	12.41		70%	3.76	46.7	327	6702	7.0
	12.39		80%	4.40	54.5	363	7142	6.7
	12.32		90%	5.83	71.8	441	7862	6.1
	12.29		100%	6.64	81.6	479	8184	5.9
	12.56	10×5	40%	2.61	32.8	272	4400	8.3	38.3℃
	12.54		50%	3.54	44.4	346	4925	7.8
	12.52		60%	4.44	55.6	412	5380	7.4
	12.49		70%	5.70	71.2	494	5881	6.9
	12.45		80%	7.57	94.2	604	6546	6.4
	12.40		90%	10.09	125.1	741	7155	5.9
	12.37		100%	11.27	139.4	795	7436	5.7
D2830-850KV(EVO)	12.57	APC 11x7	40%	2.94	37.0	283	3742	7.7	39.3℃
	12.55		50%	4.02	50.5	362	4197	7.2
	12.51		60%	5.54	69.3	464	4706	6.7
	12.47		70%	7.88	98.3	591	5329	6.0
	12.39		80%	10.79	133.7	725	5864	5.4
	12.33		90%	14.18	174.8	842	6319	4.8
	12.29		100%	15.87	195.0	876	6490	4.5
	16.63	APC 8x6	40%	2.98	49.6	319	6624	6.4	37.4℃
	16.59		50%	3.91	64.9	384	7348	5.9
	16.55		60%	4.80	79.4	443	7888	5.6
	16.51		70%	5.72	94.4	494	8371	5.2
	16.44		80%	7.14	117.4	574	9054	4.9
	16.30		90%	9.43	153.7	686	9874	4.5
	16.21		100%	10.67	173.0	733	10277	4.2
D2830-1000KV(EVO)	12.38	APC 9x6	40%	3.70	45.8	301	5502	6.6	39.4℃
	12.32		50%	4.89	60.2	366	6150	6.1
	12.25		60%	6.09	74.6	407	6663	5.5
	12.13		70%	7.39	89.6	516	7117	5.8
	11.96		80%	9.38	112.2	616	7739	5.5
	11.83		90%	12.19	144.2	762	8458	5.3
	11.76		100%	13.72	161.3	820	8765	5.1
	12.31	10×5	40%	3.93	48.4	356	4997	7.4	40.4℃
	12.22		50%	5.30	64.8	446	5585	6.9
	12.10		60%	6.69	80.9	526	6056	6.5
	11.91		70%	8.74	104.1	632	6611	6.1
	11.84		80%	11.38	134.7	761	7272	5.6
	11.68		90%	14.85	173.4	902	7876	5.2
	11.70		100%	16.80	196.6	953	8199	4.8
	16.53	APC 8x6	40%	4.73	78.2	381	7638	4.9	40.3℃
	16.42		50%	6.22	102.1	471	8375	4.6
	16.29		60%	7.65	124.6	544	8960	4.4
	16.12		70%	9.06	146.0	605	9492	4.1
	16.08		80%	11.72	188.5	713	10301	3.8
	15.89		90%	15.55	247.1	855	11203	3.5
	15.91		100%	17.79	283.0	930	11581	3.3
D2830-1300KV(EVO)	12.08	APC9x6	40%	5.94	71.8	372	6336	5.2	41.3℃
	11.98		50%	7.98	95.6	510	7056	5.3
	11.85		60%	10.09	119.6	605	7638	5.1
	11.79		70%	12.54	147.8	720	8243	4.9
	11.67		80%	16.28	190.0	880	8982	4.6
	11.48		90%	21.06	241.8	1034	9701	4.3
	11.53		100%	23.74	273.7	1108	10090	4.0
	12.23	APC10x5	40%	6.41	78.4	490	5784	6.2	42.6℃
	12.07		50%	8.85	106.8	585	6473	5.5
	11.84		60%	11.36	134.5	717	6993	5.3
	11.83		70%	15.22	180.1	876	7725	4.9
	11.61		80%	19.63	227.9	1013	8352	4.4
	11.42		90%	25.31	289.0	1156	8951	4.0
	11.45		100%	28.33	324.4	1228	9237	3.8
Nótaí: Is é an riocht tástála teochta ná teocht an dromchla mótair i throttle 100% agus ritheann an mótar 15 s.teocht timpeallachta 26â
